Запасные части для преобразователей частоты ABB

Модуль транзисторный 300A

PSSP-1

NOT IATA RESTRICTED AS PER SP A1581700V 300A, ECONO+NOT IATA RESTRICTED AS PER SP A158NOTE:Always replace new IGBT control ribbon cables when replacingnew IGBT modules to the ACS800-02/04 single drive andACS/ACH550-02 drive.IGBT control ribbon cables codes:ACS800/550-X2/X4 R8 IGBT RIBBON CABLES 3pcs SP KIT:68689023ACS800/550-X2/X4 R7 IGBT RIBBON CABLES 3pcs SP KIT:68689015ACS800 Multidrive modules IGBT control ribbon cable codes:R7i 400-690V           68869625R8i 400-690V 2XIGBT    68870089R8i 400-690V 3XIGBT    68692172R7i LC 400-690V        3AUA0000031668R8i LC 400-690V 2xIGBT 3AUA0000031400R8i LC 400-690V 3xIGBT 3AUA0000031402

1400A;1200V;PP3 module, TIM sheet, board
ZTEK:

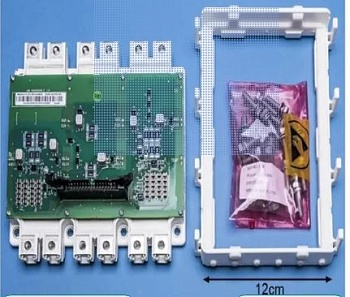

The IGBT Kit content:
-IGBT module
-Thermal interface material
-Assembly pins
-Gate control board
-spatula for removing old thermal material
-screws
-Instruction

900 A;1200 V;PRIMEPACK THERMAL COMPOUNDIncluding 3 pcs of the single IGBT kit 3AXD50000038783

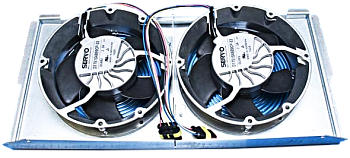

24 V;3,6 WMultiple source component:3AXD50000028424 (DELTA)3AXD50000027263 (EBM_PAPST)In case of original fan is 2-pin version (3AXD50000008804)and BDPS board has 2-pin fan outlet connector (up to RevJ),order wire set (3AXD50000036209) to be used as anadapter for 3-pin fan (3AXD50000028422).In case of replacing originally 2-pin fan outlet BDPS boardwith 3-pin revision of BDPS board (revK and forward),newwire set (3AXD50000027296) is needed along with new 3-pin fan (3AXD50000028422). Also new fan mouting plateassembly (3AXD50000009312 revC and forward) is recommendedto use to secure connectors properly.

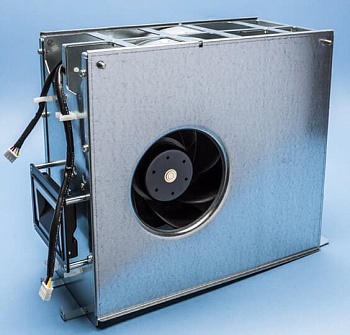

R3G355-RB03-10 is an ABB approved long-life fan with 9 years
maintenance interval. It is backwards compatible with
previous type R4E355-RM03-05. The new fan type do not
require a run capacitor.

Technical note: 4FPS10000666809
http://search.abb.com/library/Download.aspx?DocumentID=
4FPS10000666809
&LanguageCode=en&DocumentPartId=&Action=Launch
